Anti Aging PERC PV Module 280 Watt 60 Cells 20V For Solar Power System

Name: Anti Aging PERC PV Module 280 Watt 60 Cells 20V For Solar Power System
Brand: Rixin
Price: 1 USD

Wholesale Anti Aging PERC PV Module 280 Watt 60 Cells 20V For Solar Power System from china suppliers

Brand Name : Rixin

Model Number : DBM280

Certification : TUV, CE, ISO9001, ISO14001, OHSAS18000

Place of Origin : Wuhan, China

MOQ : 840PCS/HQ

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3GW/YEAR

Delivery Time : 15 working days

Packaging Details : 30pcs/carton, 26cartons/40HQ,780pcs/40HQ

Power : 280W

Dimension : 1650*992*35mm

Efficiency : 17.0%

Life span : 25 years

Contact Now

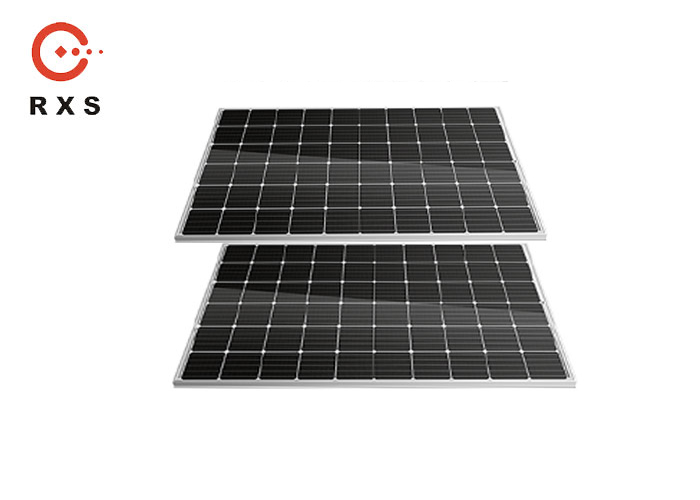

monocrystalline framed solar panel / 280W / 60cells / 20V

Main Features

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Poly-crystalline and Mono-crystalline

5. Excellent performance in harsh weather

Electrical performance parameters

Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model	DBM280
Maximum power (Pm/Wp)	280
Maximum power voltage (Vmp/V)	31.78
Maximum power current (Imp/A)	8.81
Open circuit voltage (Voc/V)	38.65
Short circuit current (Isc/A)	9.53
Module efficiency (%)	17.0
Normal operating cell temperature (NOCT)	45.3±2℃
Temperature coefficient of Voc	-0.31%/℃
Temperature coefficient of Isc	0.05%/℃
Temperature coefficient of Pm	-0.41%/℃
Power tolerance (W)	0~+5

General performance parameters

Mechanical performance parameters
Module dimension (LWH) (mm)	165099235
Cell dimension(mm)	156.75*156.75 mono
Module weight (kg)	19
Cable	cable section-4mm² length-900mm
Cell Nos & array	60(6*10)
Packing	30pcs/carton, 26cartons/40HQ,780pcs/40HQ
Quality parameters
Module working temperature range (℃)	-40~+85
Maximum system voltage (V Dc)	1000
System maximum protection current (A)	15
Maximum wind loads/maximum snow loads (Pa)	2400/5400
Hot-spot resistance	100% hot-spot free

Drawing(mm)
Anti Aging PERC PV Module 280 Watt 60 Cells 20V For Solar Power System

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty
