100W 200W 300W BIPV Module Solar System Mono Bifacial Glass Glass Paneles Solares
Characteristics solar panel
1. Manufactured according to international quality and Environment Management System (ISO9001, ISO14001)
2. High efficiency crystalline silicon solar cells
3. High transmission Iow iron tempered glass, strong mechanical resistance
4. Anti-ageing EVA and excellent anti-climate back sheet
5. Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6. Standard waterproof junction box
7. High endurance to different weather
8. Good and friendly package with less transportation and storage space.
4. Our solar panel Life&Warranty
1. 10 years limited manufacturing warranty
2. 12 years for 90% of warranted minimum power
3. 25 years for 80% of warranted minimum power
Monocrystalline Laminated Glass Module DDM-215C
Performance Parameters
| Model | RXJJ-215 |
| Maximum power at STC (Pm/Wp) | 215 |
| Maximum power voltage (Vmp/V) | 21.0 |
| Maximum power current (lmp/V) | 10.24 |
| Open circuit voltage (Voc/V) | 26.0 |
| Short circuit current (Isc/A) | 11.27 |
| Transparent (%) | 22% |
| Working temperature (℃) | -40~ +85 |
| Fault structure (mm) | 3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass |
| Cable | 4m㎡/300mm |
| Dimension (mm) | 1795mm*720mm |
| Weight (kg) | 21.8kg |
| Wind loads resistance | 2.4KN/㎡ |
| Cells No. | 40 (10*4) |
| *STC (AM1.5,1000w/㎡,cell temperature 25℃) 15-year material & workmanship warranty 30-year linear power warranty |

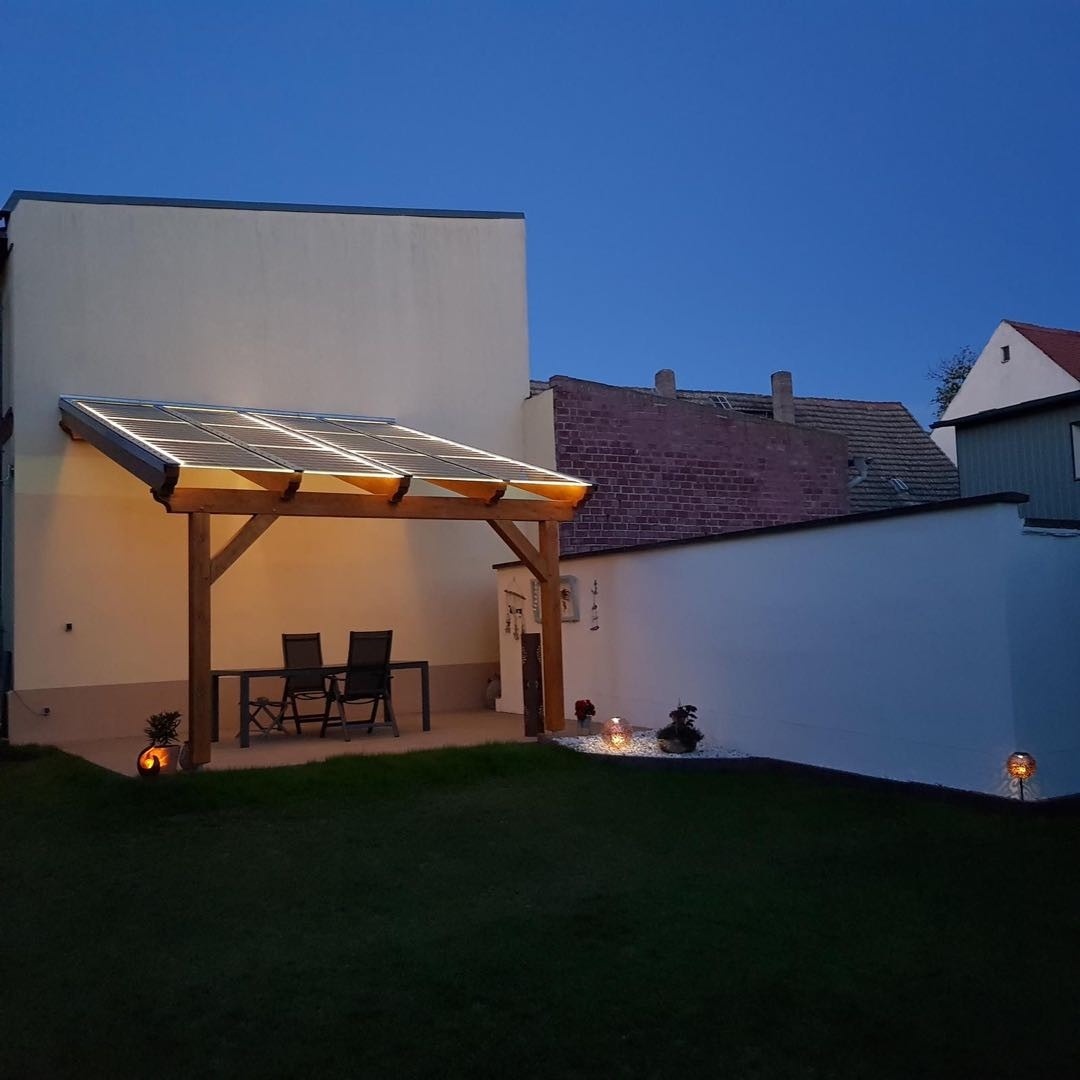

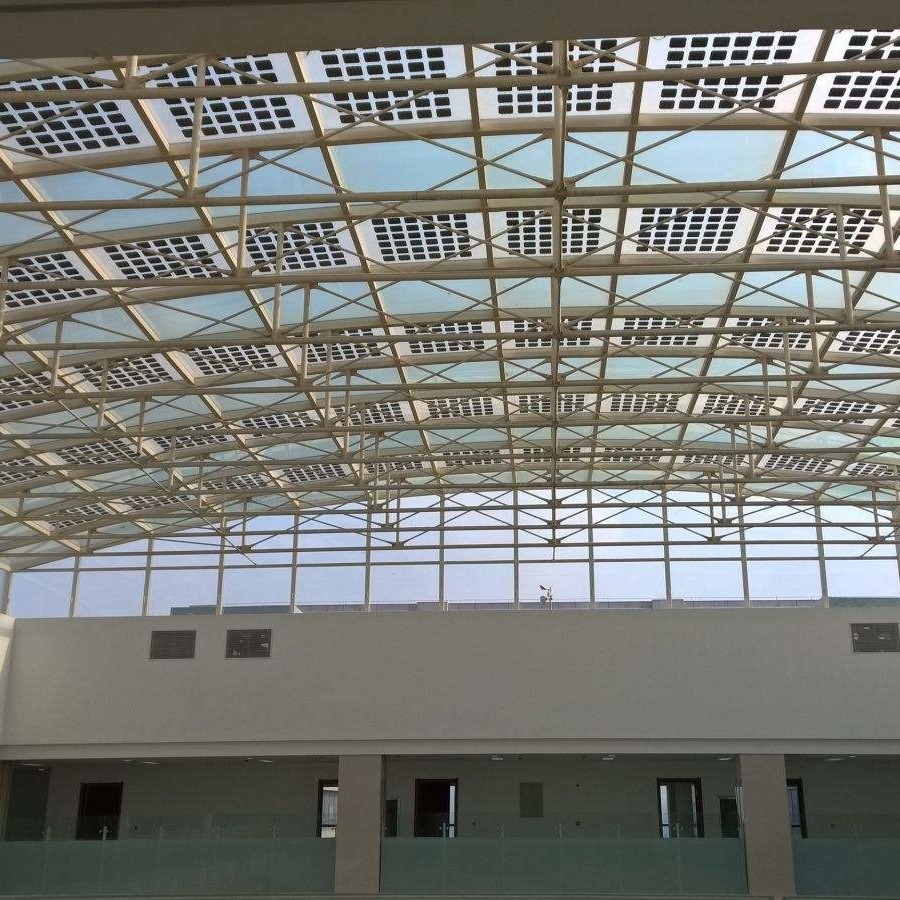

Application :Commercial, Home, Solar Home System, Solar System Solar Street Light, solar panel system
Self-branded
Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.
Industry Experience
Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.
Competitive products
High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.
Professional Team
Professional saling service and after-sale service.
R&D staff is over 10% employees.
Perfect logistics and warehousing services.
